SK-H1-ASICBD-D1030 PowerFlex 700 ASIC单板

Description

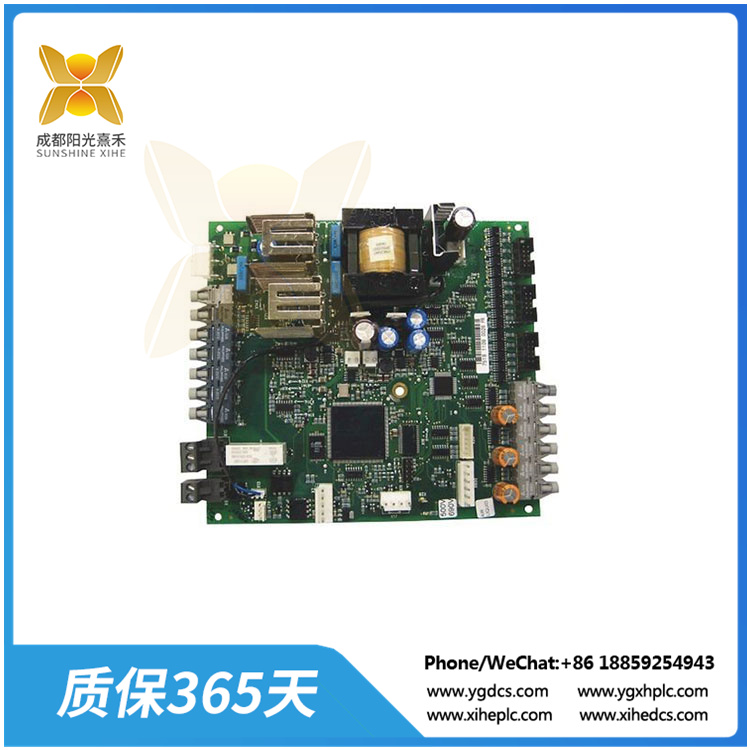

SK-H1-ASICBD-D1030 PowerFlex 700 ASIC单板

品牌:Allen-Bradley /罗克韦尔自动化
系列:PowerFlex 700
部件号:SK-H1-ASICBD-D1030
描述:asic板
兼容设备:powerflex 700交流驱动器
电压:400/408伏交流

SK-H1-ASICBD-D1030板是Allen-Bradley公司生产的1030安培级ASIC板。该电路板允许在应用中实现数字信号处理算法，以最大限度地减少功耗，并减少不同应用的硬件尺寸。它的额定电压为400/480伏交流。该ASIC板兼容PowerFlex 700 H和PowerFlex 700 S系列。该电路板在单个集成电路中包含不同的电子元件。该板是高容量工作的不同应用的经济高效的解决方案。电路板上装有电阻器、电容器、电感、二极管、晶体管和其他元件。它运行得很快。SK-H1-ASICBD-D1030板用于调节三相异步电动机和驱动器的转矩和速度。主机PowerFlex驱动器配备了先进的电机控制算法，提供一流的电机控制。这些交流驱动器具有飞行启动，过程PI控制和惯性穿越功能。

PowerFlex 700 SK-H1-ASICBD-D1030 ASIC板采用开放式外壳设计，用于其主机驱动器的驱动柜内。ASIC板带有一个60毫米大小的内部风扇，用于内部冷却。SK-H1-ASICBD-D1030 ASIC板通过不同尺寸的电缆连接风扇逆变器和其他组件。该电路板有一个金属板盖和安装螺钉，位于电源结构上，可以用潜在的高电压通电。它所使用的光纤连接到标识为H1 ~ H7的插座中。电缆的最小内弯半径为25.4毫米。安装过程中应妥善处理电缆。环境温度应在0至60摄氏度之间，以确保驱动器和电路板的正常运行。

SK-H1-ASICBD-D1030

SK-H1-ASICBD-D1030 PowerFlex 700 ASIC单板

Brand ：Allen-Bradley / Rockwell Automation
Series ：PowerFlex 700
Part Number :SK-H1-ASICBD-D1030
Description: ASIC Board
Compatible Devices: PowerFlex 700 AC Drives
Voltage :400/408 Volts AC

The SK-H1-ASICBD-D1030 board is an 1030 Amps-rated ASIC board manufactured by Allen-Bradley. The board allows for the implementation of digital signal processing algorithms in applications to minimize power consumption and reduce the hardware size for different applications. It has a voltage rating of 400/480 Volts AC. This ASIC board is compatible with both the PowerFlex 700 H and the PowerFlex 700 S series. The board has different electronics components contained on a single integrated circuit. The board is a cost-effective solution for different applications working at high volume. The board houses resistors, capacitors, inductors, diodes, transistors, and other components. It is fast in operation. The SK-H1-ASICBD-D1030 board is used for regulating the torque and speed of 3-phase induction motors and drives. The host PowerFlex drives come with an advanced motor control algorithm that offers best-in-class motor control. These AC drives feature the flying start, process PI control, and inertia ride thru functions.

The PowerFlex 700 SK-H1-ASICBD-D1030 ASIC board is designed with an open enclosure and it is used inside the drive cabinet of its host drive. The ASIC board comes with an internal fan that is 60 millimeters in size and that is used for internal cooling. The SK-H1-ASICBD-D1030 ASIC board is connected with fan inverters, and other components by using different-sized cables. The board has a sheet metal cover and mounting screws located on the power structure and it can be energized with potentially high voltage. The fiber-optic cables that it uses are connected into the sockets labeled from H1 to H7. The minimum inside bend radius for the cables is 25.4 millimeters. The cables should be handled properly during the installation process. The environmental temperature should be between 0 and 60 degrees Celsius for proper drive and board operation.
