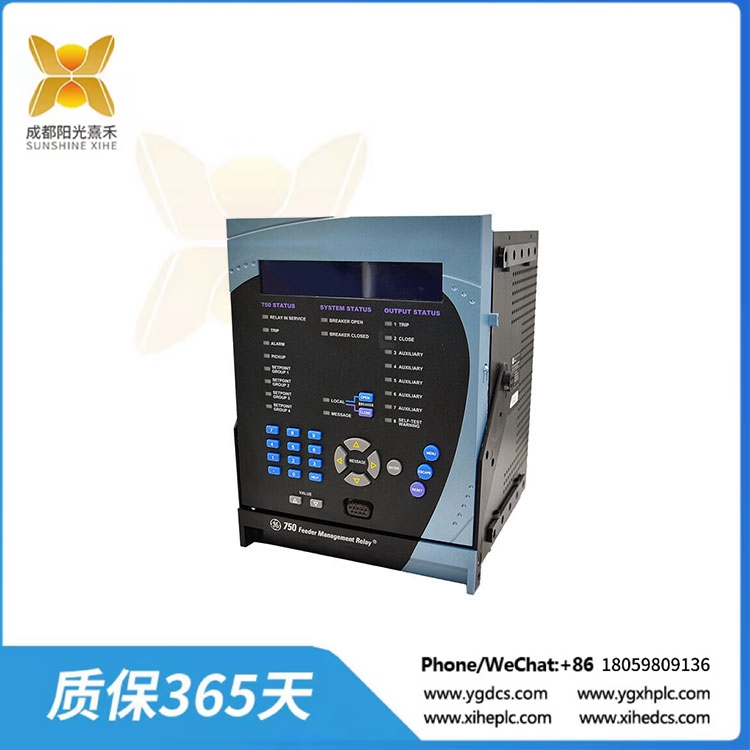

SR750-P5-G5-S5-HI-A20-R-E 750系列馈线管理继电器

Description

SR750-P5-G5-S5-HI-A20-R-E 750系列馈线管理继电器

产品描述
750- p5 – g5 – s5 – hi – a20 – r – t是GE Multilin的750系列馈线管理继电器。这种管理继电器是通用电气在AX控制库存中提供的几种继电器之一，随时准备发货。如果您愿意，我们很乐意将较小的组件组合在一个集装箱中。

750-P5-G5-S5-HI-A20-R-T提供可编程设定点菜单导航。键盘可用于浏览现场菜单。这提供了直接访问计量，状态，维护，跳闸计数器，电弧电流和其他设置。必须注意的是，设置输入后立即使用，因此在将设置输入工作中的继电器时应谨慎使用。然而，该设备同时提供硬件和密码安全功能，以锁定未经授权的更改。

750-P5-G5-S5-HI-A20-R-T可用于定义保护元件，采集系统数据，定义输出触点通电，定义断路器合闸，定义断路器监控。它还可以执行监控功能，如延时，断路器定时，报警和跳闸值，最小值和最大值。

750- p5 – g5 – s5 – hi – a20 – r – t是一个750继电器，输入5 a相电流。该装置具有5a零序电流输入和5a灵敏地电流输入。该单元额定88至300 VDC控制功率或70至265 VAC @ 48至62 Hz。此外，该单元具有8个4-20 mA模拟输出。

GE Multilin手册将指导您安装、拆卸或维护本设备。如果您对处理或其他程序有疑问，请参考本原始文档。AX Control通常可以在您的订单到达后的几个小时内运送像这样的单位。一些限量库存可能需要额外的时间。

SR750-P5-G5-S5-HI-A20-R-E

SR750-P5-G5-S5-HI-A20-R-E 750系列馈线管理继电器

Product Description
The 750-P5-G5-S5-HI-A20-R-T is a 750 Series Feeder Management Relay from GE Multilin.  This management relay is one of several available from General Electric in AX Control stock, ready to ship at a moment’s notice.  We are happy to combine smaller components together in one shipping container if you prefer.

The 750-P5-G5-S5-HI-A20-R-T offers programmable setpoint menu navigation.  The keypad can be used to navigate through the menu on-site.  This offers direct access to metering, status, maintenance, trip counter, arcing current, and other settings.   It must be noted settings are used immediately as they are entered, so caution should be used when entering settings into an in-service relay.  However, the unit offers both hardware and passcode security features to lock out unauthorized changes.

The 750-P5-G5-S5-HI-A20-R-T can be used to define protection elements, gather system data, define output contact energizing, define breaker closure, and define breaker monitoring.  It can also perform monitoring functions like time delays, breaker timings, alarm and trip values, and minimum and maximum values.

The 750-P5-G5-S5-HI-A20-R-T is a 750 relay with 5 A phase current inputs.  The unit has 5 A zero-sequence current inputs as well as 5 A sensitive ground current inputs.  This unit is rated for 88 to 300 VDC control power or 70 to 265 VAC @ 48 to 62 Hz.    Additionally, the unit has Eight 4-20 mA analog outputs.

GE Multilin manuals will guide you through the installation, removal, or maintenance of this unit.  Please refer to this original documentation if you have questions about handling or other procedures.  AX Control can typically ship units like this one within a few hours of your order’s arrival.  Some limited-item stock may require additional time.
