SYMAP-BCG 基于微处理器的数字保护和控制装置

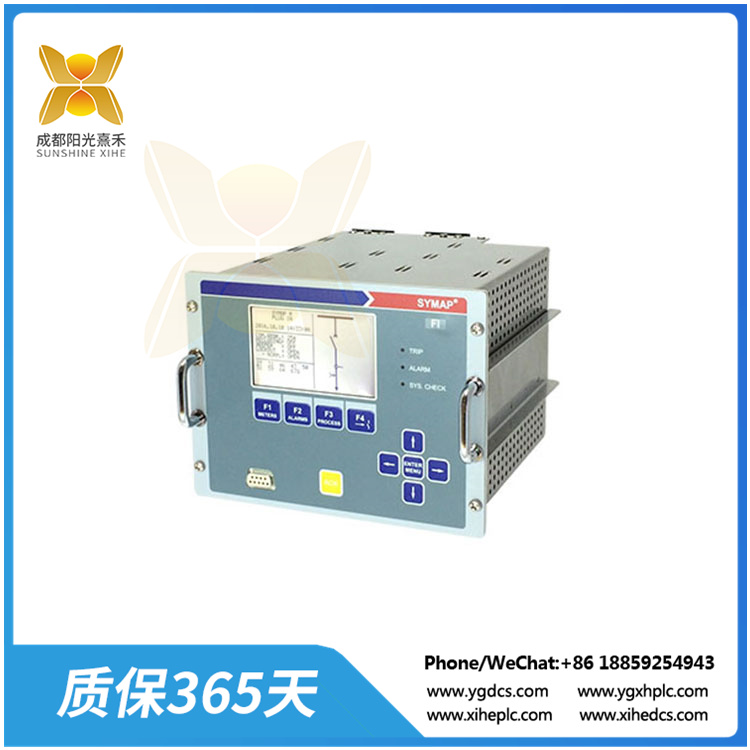

由于其集成的保护功能和人机界面能力，它是一种高效和经济的解决方案，适用于所有类型的开关设备。凭借三个强大的微处理器，SYMAP®为发电机，电动机(同步和异步)，变压器，电力线和配电提供完整的保护和控制功能。所有保护功能可以同时激活，同时使用所有保护功能没有限制。

使用SYMAP®，五个主要断路器控制可以激活所有必要的功能，如显示，控制和阻塞，以实现最佳的断路器管理。一个小的集成PLC允许单独的联锁控制命令。为了在调试和使用过程中的灵活性，可以使用数字和模拟输出将SYMAP®控制单元连接到主配电盘控制。

此外，具有不同类型数据协议的各种串行接口可用于SYMAP®单元与中央控制系统之间的通信。对于诊断和监控，SYMAP®具有三个相互监督的微处理器，并提供看门狗系统。重要功能以双冗余组合方式布置，与第二个处理器独立运行。单独连接，可选的短路保护单元与SYMAP®设备并行工作，即使电源故障也会这样做。

SYMAP-BCG 基于微处理器的数字保护和控制装置

Because of its integrated protection functions and human-machine interface capabilities, it is an efficient and cost-effective solution for all types of switch gears. With three powerful microprocessors, SYMAP® offers complete protection and control functions for generators, motors (synchronous and asynchronous), transformers, power lines, and distributions. All protection functions can be activated simultaneously, and there are no limits in using all of them at the same time.

With SYMAP®, five main breaker controls can be activated with all the necessary functions, such as display, control and blocking, for optimal breaker management. A small integrated PLC allows individual interlocks of control commands. For flexibility in commissioning and during use, both digital and analog outputs can be used to connect the SYMAP® control unit to main switchboard controls.

Additionally, a variety of serial interfaces with different kinds of data protocols can be used for communication between SYMAP® units and the central control system. For diagnostics and monitoring, SYMAP® has three microprocessors which supervise each other, and providing a watchdog system. Important functions are laid out in a double redundancy combination, operating independently with the second processor. Connected separately, an optional unit for short circuit protection operates parallel to the SYMAP® device and will do so even if the power supply fails.
