TERMINAL-PLATE-F860-CA C系列“现场总线接口模块

Description

TERMINAL-PLATE-F860-CA    C系列“现场总线接口模块

产品描述

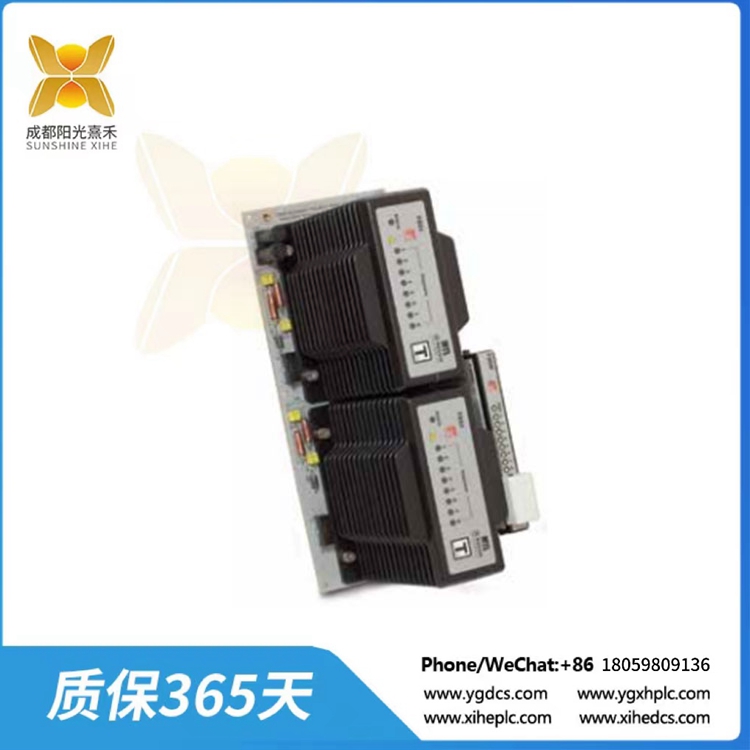

F860设计用于与霍尼韦尔Experion“系列C”现场总线接口模块(fim)一起使用时，为八个基础现场总线H1段提供冗余电源。模块支架符合11.6英寸I/O终端组件(iota)的机电要求，可直接安装到霍尼韦尔安装通道中。

现场总线段由两个冗余电源模块f801或f802供电。故障预警、电流隔离、功率调节和分段终止被集成到每个F80x模块中。在单工应用中，可以使用单个F80x模块。当安装单个或冗余F80x模块时，自动维护现场总线段的终止。

为保证高可靠性，F860 IOTA采用无源模式，仅提供电源模块对外连接。

IOTA有两个多针连接器，每个连接器通过标准系统电缆连接到FIM IOTA。

在系列C /O机柜内的不同位置，可提供不同长度的F860及其各自的FIM iota的安装。现场接线连接在FIM IOTA。

TERMINAL-PLATE-F860-CA

TERMINAL-PLATE-F860-CA    C系列“现场总线接口模块

Product Description
The F860 is designed to provide redundant power to eight foundation fieldbus H1 segments when used with the Honeywell Experion “Series C” Fieldbus Interface Module (fim). Module brackets comply with 11.6 The mechanical and electrical requirements of the inch I/O Terminal Assembly (iota) can be installed directly into the Honeywell installation channel.

The fieldbus segment is powered by two redundant power modules f801 or f802. Fault warning, current isolation, power regulation and segment termination are incorporated into each F80x module. In simplex applications, can To use a single F80x module. Automatically maintains the termination of the fieldbus segment when a single or redundant F80x module is installed.

To ensure high reliability, the F860 IOTA uses passive mode and provides only power modules to connect to external connections.

IOTA has two multi-pin connectors, each connected to FIM IOTA via a standard system cable.

Different lengths are available to accommodate the installation of the F860 and its respective FIM iota in different locations within the series C /O cabinet. Field wiring is connected at FIM IOTA.
