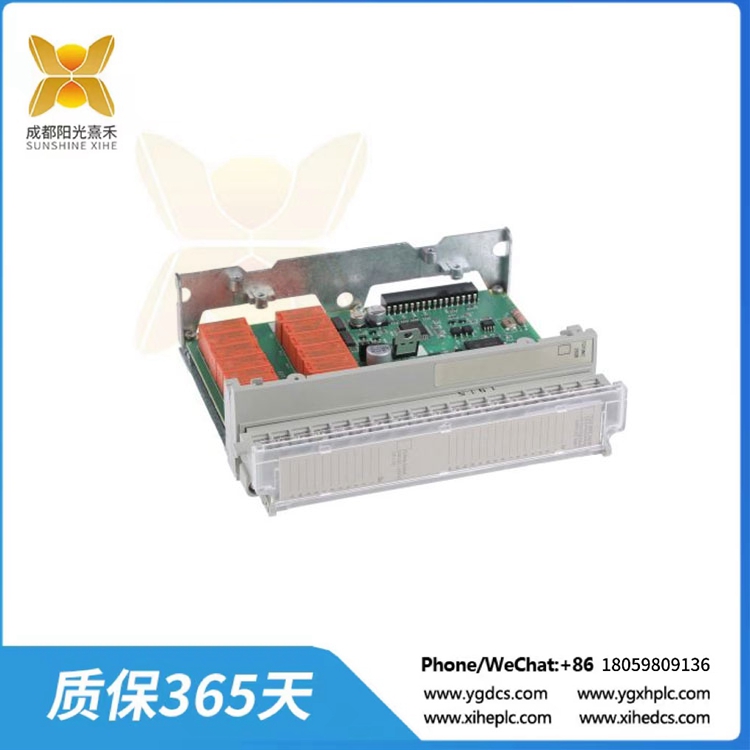

TSXDMZ28DR 离散量继电i / o基座

Description

TSXDMZ28DR 离散量继电i / o基座

主要信息
产品系列:Modicon TSX Micro自动化平台
产品类型:离散量继电i / o基座
离散量输入数量：16 螺钉接线端子
离散量输入电压:24 v直流，离散输入逻辑:负
离散量输入电流:9 mA

环境
符合标准:iec 1131-2类型
约定发热电流[i]:3 A

产品概述
由施耐德电气制造的TSXDMZ28DR是I/O模块领域的坚定代表，旨在无缝集成到Modicon TSX Micro自动化平台中。这种分立继电器I/O基础体现了可靠性和效率，在各种工业应用中提供最佳性能。

稳健设计
精心制作的细节，TSXDMZ28DR拥有一个坚固的构建，但保持一个轻量化的轮廓，只有0.5公斤。它的结构标志着施耐德电气对耐用性的承诺，同时又不影响便携性，确保在不同的操作环境中易于安装和可操作性。

增强的连接
该模块配备了16个螺钉端子块，用于离散输入，有助于简化连接，适应一系列精确和轻松的布线配置。24 V直流(负)的离散输入电压进一步强调了其与标准工业电源系统的兼容性，确保无缝集成到现有设置中。

高效的性能
响应时间从0.1到7.5毫秒，TSXDMZ28DR保证快速和精确的信号处理，促进输入状态之间的快速转换。其兼容性扩展到2线/3线接近传感器，扩大了其在工业应用领域的实用性。

可靠的输出
该模块主要用于电阻性负载，在10至34 V直流和19至264 V交流的指定电压范围内工作。常开(NO)触点的结合确保了可靠的性能，提高了操作效率，并最大限度地减少了各种工业环境下的停机时间。

优化功耗
效率是TSXDMZ28DR设计的核心，体现在其优化的功耗指标上。该模块功耗为4.5 W，电流消耗范围为131 mA至160 mA，在性能和能效之间取得了平衡，有助于可持续运行。

多才多艺的兼容性
TSXDMZ28DR可容纳各种各样的电源，满足不同电压和负载的要求。从电阻到感应负载，该模块展示了多功能性，确保与不同工业设备配置的兼容性。

TSXDMZ28DR

TSXDMZ28DR 离散量继电i / o基座

主要信息
产品系列：Modicon TSX Micro 自动化平台
产品类型：离散量继电I/O基座
离散量输入数量：16 螺钉接线端子
离散量输入电压：24 V 直流, 离散输入逻辑: 负
离散量输入电流：9 mA

环境
符合标准：IEC 1131-2 类型 1
约定发热电流 [Ith]：3 A

Product Overview
The TSXDMZ28DR, manufactured by Schneider Electric, stands as a stalwart within the realm of I/O Modules, designed to integrate seamlessly into the Modicon TSX Micro automation platform. This discrete relay I/O base embodies reliability and efficiency, delivering optimal performance across various industrial applications.

Robust Design
Crafted with meticulous attention to detail, the TSXDMZ28DR boasts a sturdy build, yet maintains a lightweight profile at just 0.5 kg. Its construction signifies Schneider Electric’s commitment to durability without compromising on portability, ensuring ease of installation and maneuverability within diverse operational environments.

Enhanced Connectivity
Equipped with 16 screw terminal blocks for discrete inputs, this module facilitates streamlined connectivity, accommodating a range of wiring configurations with precision and ease. The discrete input voltage of 24 V DC (negative) further underscores its compatibility with standard industrial power systems, ensuring seamless integration into existing setups.

Efficient Performance
With a response time spanning from 0.1 to 7.5 milliseconds, the TSXDMZ28DR guarantees swift and precise signal processing, facilitating rapid transitions between input states. Its compatibility extends to 2-wire/3-wire proximity sensors, broadening its utility across a spectrum of industrial applications.

Reliable Output
Functioning primarily with resistive loads, this module operates within specified voltage limits of 10 to 34 V DC and 19 to 264 V AC. The incorporation of normally open (NO) contacts ensures dependable performance, enhancing operational efficiency and minimizing downtime across diverse industrial settings.

Optimized Power Consumption
Efficiency lies at the core of the TSXDMZ28DR’s design, evident in its optimized power consumption metrics. With a power dissipation of 4.5 W and current consumption ranging from 131 mA to 160 mA, this module strikes a balance between performance and energy efficiency, contributing to sustainable operations.

Versatile Compatibility
The TSXDMZ28DR accommodates a wide array of power sources, catering to varying voltage and load requirements with finesse. From resistive to inductive loads, this module demonstrates versatility, ensuring compatibility with different industrial equipment configurations.
