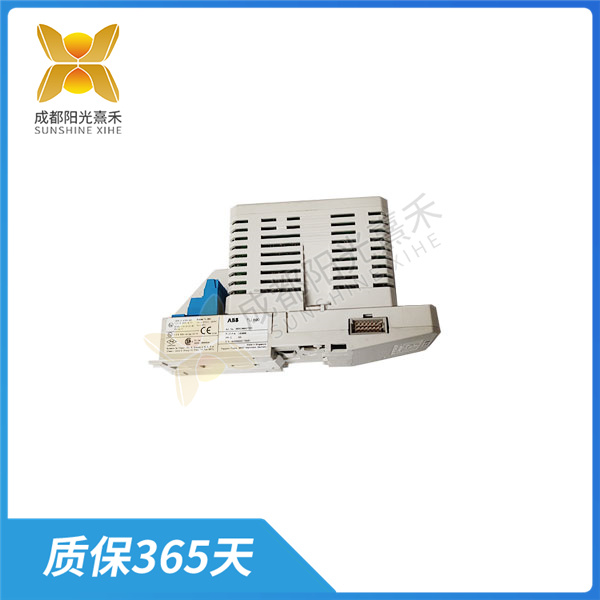

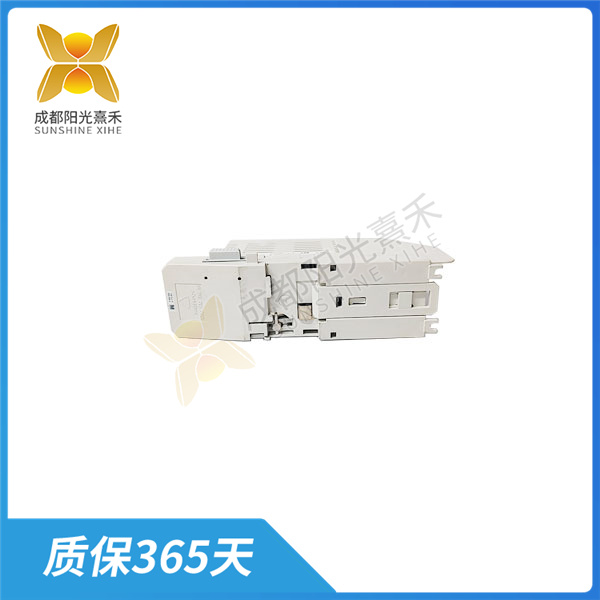

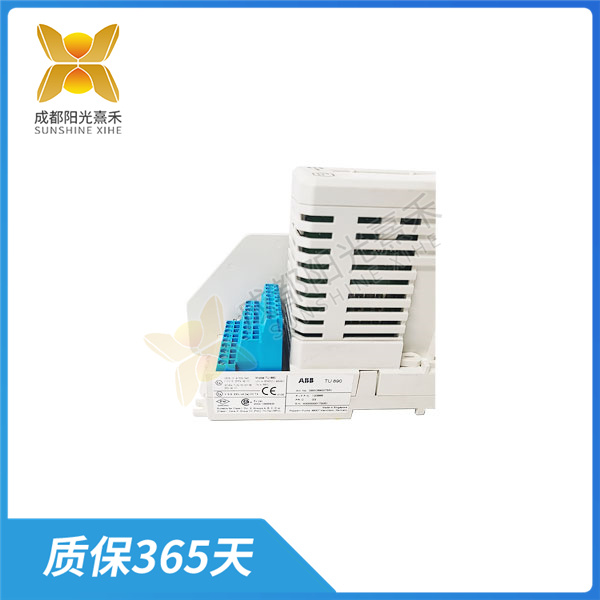

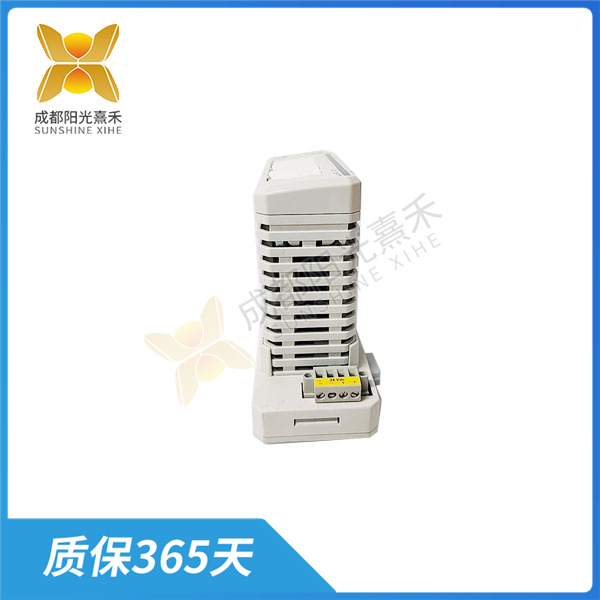

TU890 3BSC690075R1 模拟量输出模块通过数模转换器（DAC）将数字信号转换为模拟电压或电流信号

Description

TU890 3BSC690075R1 模拟量输出模块通过数模转换器（DAC）将数字信号转换为模拟电压或电流信号

模拟量输出模块主要用于控制系统，TU890 3BSC690075R1 能够将控制系统中的数字信号转换为模拟量信号，并传递给执行器。这样，控制系统可以通过模拟量输出模块实现对现场设备的控制和调节。具体来说，模拟量输出模块的用途包括：

控制阀门的开度、电机的转速等。
实现不同类型信号之间的互相转换。
实现数据采集和存储，为后续的数据分析提供基础数据。
与控制系统连接，实现控制系统与现场设备之间的无缝连接。
此外，模拟量输出模块还具有报警功能，可以监视数据，如有异常情况，并立即报告报警信息。

模拟量输出模块的工作原理主要涉及将数字信号转换为模拟信号的过程。在控制系统中，数字信号是一种离散的、不连续的信号，而模拟信号则是连续的、变化的信号。模拟量输出模块的作用就是将控制系统中的数字信号转换为模拟信号，以实现对现场设备的控制和调节。

具体来说，模拟量输出模块通过数模转换器（DAC）将数字信号转换为模拟电压或电流信号，这个过程需要按照一定的比例关系进行转换。转换后的模拟信号可以直接驱动执行器，如阀门、电机等，以实现控制功能。同时，模拟量输出模块还需要具备数据采集和存储功能，以便后续的数据分析。

此外，模拟量输出模块还具有报警功能。它可以监视数据的变化情况，如有异常情况发生，会立即报告报警信息，以便及时处理。

总之，TU890 3BSC690075R1 模拟量输出模块的工作原理主要是将数字信号转换为模拟信号，以实现对现场设备的控制和调节。在实际应用中，需要根据具体需求选择适合的模拟量输出模块，并正确配置参数，以确保系统的稳定性和可靠性。

TU890 3BSC690075R1 模拟量输出模块通过数模转换器（DAC）将数字信号转换为模拟电压或电流信号

The analog output module is mainly used in the control system, and the TU890 3BSC690075R1 can convert the digital signal in the control system into an analog signal and pass it to the actuator. In this way, the control system can control and adjust the field equipment through the analog output module. Specifically, the uses of analog output modules include:

Control valve opening, motor speed, etc.
Realize the conversion between different types of signals.
Data collection and storage are realized to provide basic data for subsequent data analysis.
Connect with the control system to achieve seamless connection between the control system and the field equipment.
In addition, the analog output module also has an alarm function, which can monitor the data, if there is an abnormal situation, and report the alarm information immediately.

The working principle of analog output module mainly involves the process of converting digital signal to analog signal. In the control system, the digital signal is a discrete and discontinuous signal, while the analog signal is a continuous and changing signal. The function of the analog output module is to convert the digital signal in the control system to the analog signal to realize the control and adjustment of the field equipment.

Specifically, the analog output module converts a digital signal to an analog voltage or current signal through a digital-to-analog converter (DAC), a process that needs to be converted in a certain proportional relationship. The converted analog signal can directly drive actuators, such as valves, motors, etc., to achieve control functions. At the same time, the analog output module also needs to have data acquisition and storage functions for subsequent data analysis.

In addition, the analog output module also has alarm function. It can monitor the change of the data, if there is an abnormal situation, it will immediately report the alarm information for timely processing.

In short, the working principle of the TU890 3BSC690075R1 analog output module is mainly to convert digital signals to analog signals to achieve the control and adjustment of field equipment. In practical application, it is necessary to select the appropriate analog output module according to the specific needs, and configure the parameters correctly to ensure the stability and reliability of the system.
