UR1800 记录仪

Description

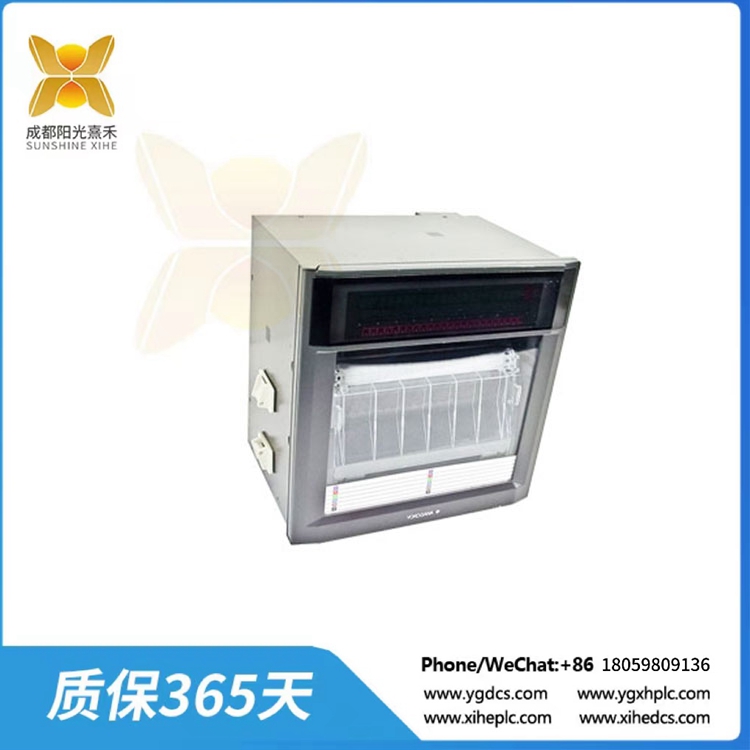

UR1800 记录仪

产品描述

UR1800 YOKOGAWA记录仪是用来记录和监测各种参数和变量的设备。它可以收集数据并生成详细的记录，以便进行分析和评估。

特征
UR1800记录仪是一种精密测量仪器，具有许多优点：尺寸紧凑，可靠性高：其紧凑的尺寸（深度220毫米）允许您在有限的空间内安装UR1800。在笔型的情况下，无接触电位计和无刷直流伺服电机有助于其高可靠性。在点印刷模型的情况下，通过使用高击穿电压固态继电器来获得高可靠性。

通用输入：直流电压、热电偶（TC）、电阻温度检测器（RTD）和数字输入（触点）等输入都可以方便地使用。无需更换任何DIP开关；可以使用键盘来设置输入的类型。简单的交互式设置：只使用面板键，设置过程变得非常简单。UR1800要求您选择所需设置，而无需记住困难的设置代码。

大型信息操作员显示器：大型VFD显示器同时显示测量数据（包括工程单位）或时钟和条形图。

有两种类型的条形图可用：百分比显示和中心零点显示。由于其1%的分辨率，条形图显示非常准确。

最多可进行四个通道的连续笔式记录（仅限于笔式型号）：根据UR1800型号的不同，UR1800最多可同时测量四个通道。这允许您减少所需记录器的数量。

通用电源（/P1型号除外）：UR1800可接受90至250VAC（132至180VAC除外）和50/60Hz，无任何问题，也无需切换开关。因此，UR1800可与多种电源兼容。

高性能：UR1800笔型的采样速度高达125毫秒，而UR1800点打印型的记录周期为6通道/10秒，即12通道/15秒。，18英寸/20秒。或24ch/30秒。取决于型号。UR1800配备了许多功能。特殊功能可以作为选项订购。此外，其功耗较低（4pen型号；正常运行条件下为30VA）。

易于维护：由于使用了许多无接触部件，减少了对形式维护的需求。UR1800采用模块化设计，大大减少了维护所需的时间。

封闭式外壳：UR1800的封闭式外壳使其能够在许多环境中使用。前门符合DIN 40050-IP54。

计算机接口和存储卡：如果配备此选项，UR1800可以使用IC存储卡直接从电脑存储和检索测量数据以及设置数据。可用接口为RS-422-A。基于国际安全标准：UR1800（便携式除外）基于IEC 348等国际安全标准。

UR1800是一款记录宽度为180毫米的紧凑型记录器。模型族由1、2、3、4笔和6、12、18、24点模型组成。笔型实现每个通道的连续记录，而点打印型实现6点/10秒的高记录速度。，12点/15秒。，18点/20秒。，24点/30秒。它的输入是通用的，这意味着它可以自由选择使用输入，如直流电压、热电偶、电阻温度检测器、触点输入等。除了模拟记录外，还可以使用数字数据，如日期和时间、测量值、标签、单位、标度值、图表速度、警报、计算值等。也可以打印。高可靠性是通过内部开发的无触点技术实现的，如高击穿电压半导体继电器和直流无刷伺服电机。此外，UR1800的外壳很短，只有220毫米。使用5×7VFD显示器实现了良好的可读性，并且由于交互式程序菜单，其设置变得容易。实时数据也显示为条形图。

应用领域
UR1800 YOKOGAWA记录仪广泛应用于如过程温度监测、污染、建筑、熔炉、医疗诊断领域、制冷领域等

UR1800

UR1800 记录仪

Product description

The UR1800 YOKOGAWA recorder is a device used to record and monitor various parameters and variables. It can collect data and generate detailed records for analysis and evaluation.

trait
The UR1800 recorder is a precision measuring instrument with many advantages: compact size and high reliability: its compact size (depth of 220 mm) allows you to install the UR1800 in a limited space. In the case of pen type, contactless potentiometers and brushless DC servo motors contribute to its high reliability. In the case of point-printed models, high reliability is achieved by using a high breakdown voltage solid-state relay.

Universal inputs: Inputs such as DC voltage, thermocouple (TC), resistance temperature detector (RTD) and digital input (contacts) can be easily used. No need to replace any DIP switches; You can use the keyboard to set the type of input. Simple interactive setup: Using only the panel keys, the setup process becomes very simple. The UR1800 requires you to choose the Settings you want without having to remember difficult setup codes.

Large information operator display: Large VFD displays both measurement data (including engineering units) or clocks and bar charts.

There are two types of bar charts available: the percentage display and the center zero display. Thanks to its 1% resolution, the bar chart displays very accurately.

Continuous pen recording of up to four channels (pen models only) : Depending on the UR1800 model, the UR1800 can measure up to four channels simultaneously. This allows you to reduce the number of loggers required.

Universal power supply (except /P1 models) : The UR1800 can accept 90 to 250VAC (except 132 to 180VAC) and 50/60Hz without any problems and without switching switches. The UR1800 is therefore compatible with a wide range of power supplies.

High performance: The UR1800 pen model has a sampling speed of up to 125 ms, while the UR1800 point print model has a recording cycle of 6 channels /10 seconds, which is 12 channels /15 seconds. 18 inches /20 seconds. Or 24ch/30 seconds. Depends on the model. The UR1800 comes with many features. Special features can be ordered as an option. In addition, its power consumption is lower (4pen models; 30VA under normal operating conditions).

Easy maintenance: The use of many contactless parts reduces the need for formal maintenance. The modular design of the UR1800 greatly reduces the time required for maintenance.

Closed housing: The UR1800’s closed housing enables it to be used in many environments. The front door complies with DIN 40050-IP54.

Computer interface and memory card: If equipped with this option, the UR1800 can store and retrieve measurement data as well as setup data directly from the computer using an IC memory card. Available interface is RS-422-A. Based on international safety standards: UR1800 (except portable) is based on international safety standards such as IEC 348.

The UR1800 is a compact recorder with a recording width of 180 mm. The model family consists of 1, 2, 3, 4 pen and 6, 12, 18, 24 point models. The pen type enables continuous recording of each channel, while the point print type achieves a high recording speed of 6 o ‘clock /10 seconds. , 12 o ‘clock /15 seconds. 18 o ‘clock /20 seconds. 24 o ‘clock /30 seconds. Its input is universal, which means it can freely choose to use inputs such as DC voltage, thermocouple, resistance temperature detector, contact input, etc. In addition to analog recording, digital data such as date and time, measurements, labels, units, scale values, chart speeds, alerts, calculated values, etc., can be used. It can also be printed. High reliability is achieved through internally developed contactless technologies such as high breakdown voltage semiconductor relays and DC brushless servo motors. In addition, the case of the UR1800 is very short, only 220 mm. Good readability is achieved with the 5×7VFD display, and its setup is made easy thanks to the interactive program menu. The real-time data is also displayed as a bar chart.

Application field
The UR1800 YOKOGAWA recorder is widely used in such fields as process temperature monitoring, pollution, construction, furnaces, medical diagnostics, refrigeration, etc
