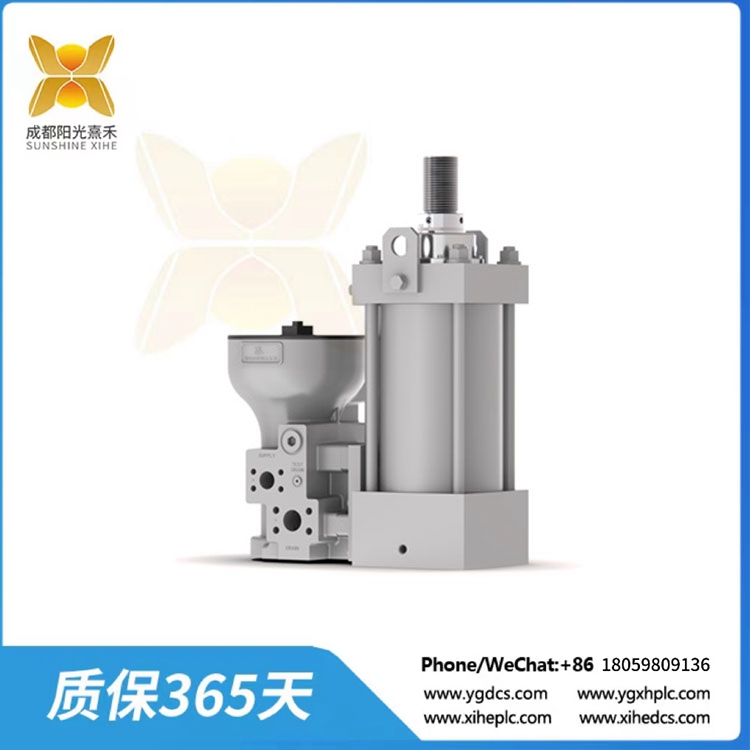

V45TD-1007-MUE2 电液执行器

Description

V45TD-1007-MUE2 电液执行器

VariStroke系列可通过简单易用的基于计算机的PC服务工具进行配置，允许用户轻松配置、校准和调整所有内部功能和响应设置。其集成驱动器包括一个4-20 mA输出通道，用于指示输出轴(控制阀)位置，以及装置报警和停机继电器输出，用作装置健康和状态指示。4-20 mA按需输入和双冗余轴位置传感器使其即使在按需输入或反馈传感器故障的情况下也能继续运行，从而确保延长强制停机和在线系统维修之间的运行时间。

这种完全集成的致动器的总安装成本很低，因为它是在工厂完全组装和测试的，大大减少了”OEM和最终用户的制造、测试和现场组装时间。在改型应用中，变冲程致动器可用于直接取代现有的伺服系统。这节省了对现有和老化伺服系统的昂贵维修,消除了为过时设备获取备件的困难，并减少了校准时间和难度。
耐脏设计:
两个移动部件
50磅切屑剪切力
0无识别结果
自洁阀设计
可变/可配置轴行程长度
快速压摆率/时间:
依赖于应用
500 psi供应压力空载时，转换速率高达762毫米/秒(30英寸秒)
精确位置控制
侧向负载容许:
轴承
三重密封技术
集成驱动器:
4- 20毫安
包括阀门流量线性化表
冗余MLDT位置传感器
通过危险场所认证

V45TD-1007-MUE2

V45TD-1007-MUE2 电液执行器

The VariStroke series can be configured with an easy-to-use computer-based PC service tool that allows users to easily configure, calibrate and adjust all internal functions and response Settings. Its integrated drivers include a 4-20 mA output channel to indicate the position of the output shaft (control valve), and device alarm and shutdown relay outputs for device health and status indication. The 4-20 mA on-demand input and dual redundant shaft position sensors enable continued operation even in the event of an on-demand input or feedback sensor failure, ensuring extended uptime between forced downtime and online system repairs.

The total installation cost of this fully integrated actuator is low because it is fully assembled and tested at the factory, significantly reducing “manufacturing, testing and field assembly time for Oems and end users.” In retrofit applications, variable stroke actuators can be used to directly replace existing servo systems. This saves costly repairs to existing and aging servo systems, eliminates the difficulty of obtaining spare parts for obsolete equipment, and reduces calibration time and difficulty.
Dirt resistant design:
Two moving parts
50 pounds of chip shear
0 No identification result
Self-cleaning valve design
Variable/configurable shaft travel length
Rapid pressure swing rate/time:
Application dependent
Up to 762 mm/s (30 inches/s) when unloaded at 500 psi supply pressure
Precise position control
Lateral load tolerance:
bearing
Triple seal technique
Integrated driver:
4-20 mA
Includes valve flow linearization table
Redundant MLDT position sensor
Certified hazardous place
