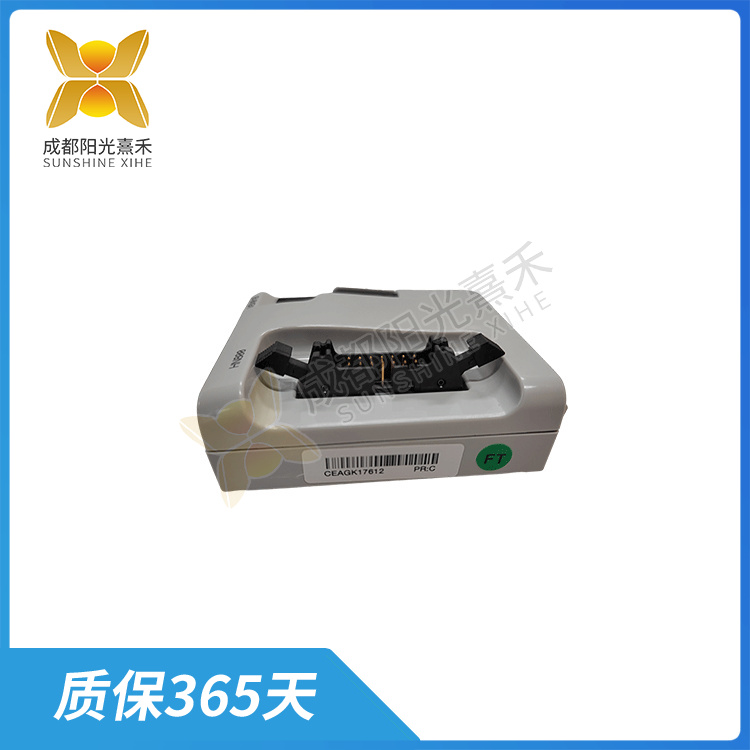

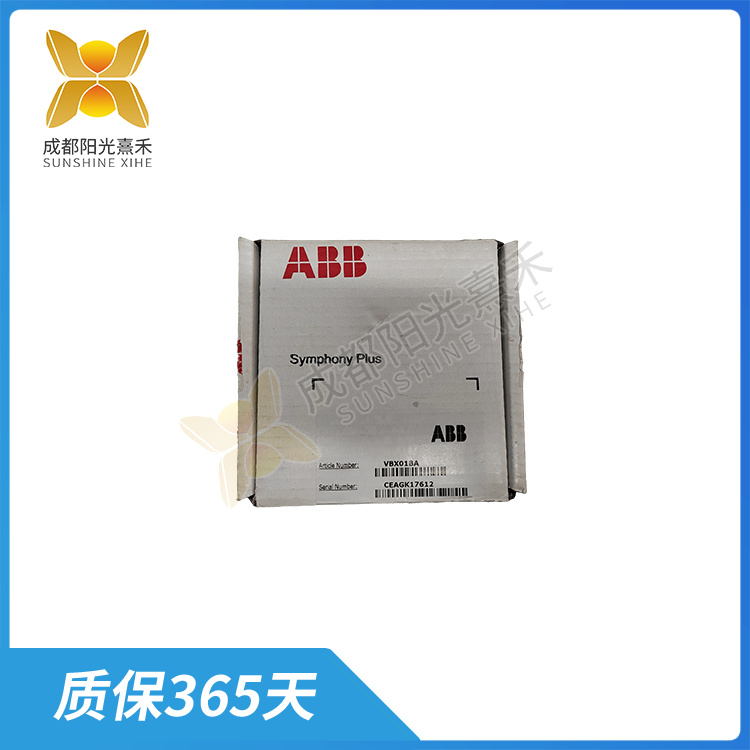

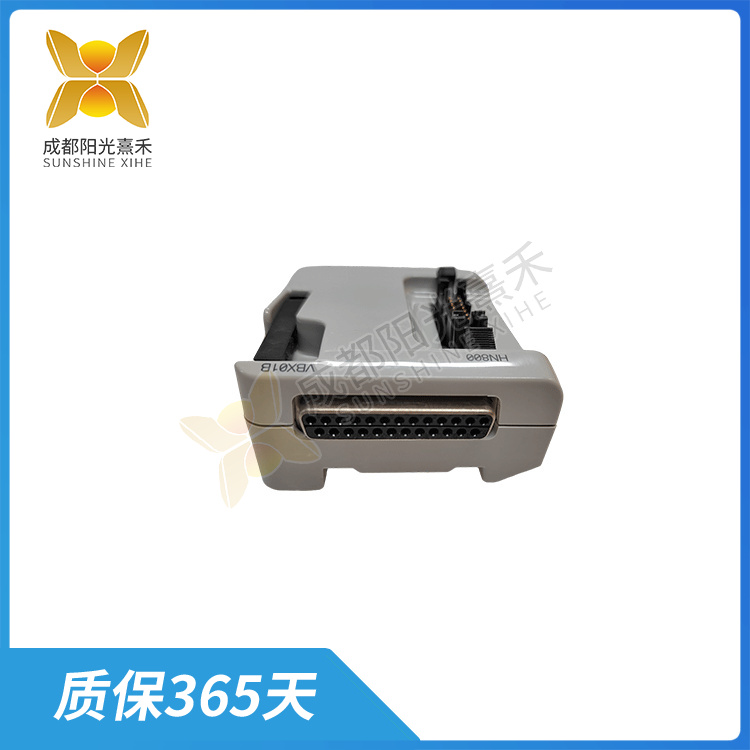

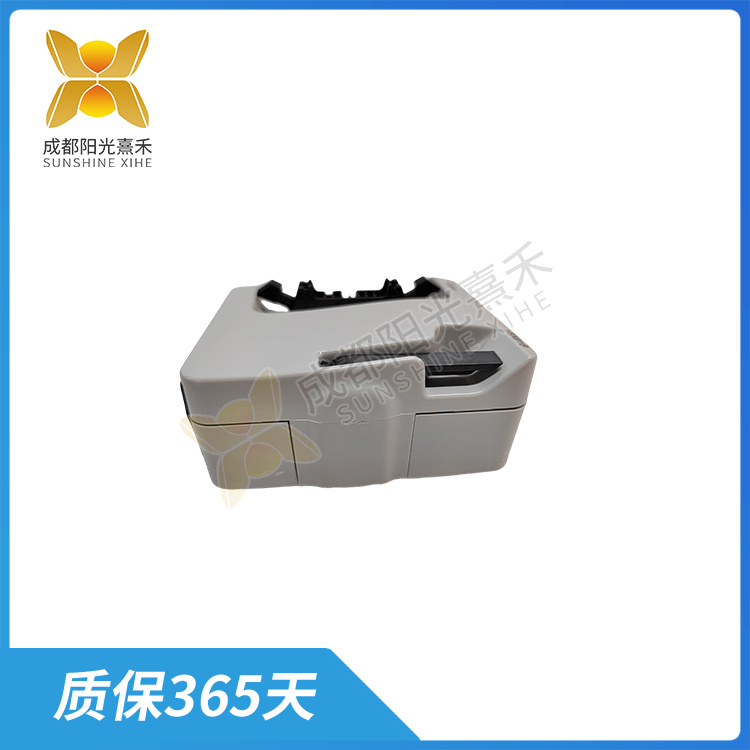

VBX01BA 总线扩展器实现了对扩展总线的管理和控制

描述

VBX01BA 总线扩展器实现了对扩展总线的管理和控制

VBX01BA总线扩展器的工作原理主要涉及到数据传输和控制两个方面。

首先，总线扩展器通过特定的接口与主总线连接，从主总线获取电源、数据和控制信号。然后，它将这些信号进行相应的转换和扩展，以适应更多的设备或更远的传输距离。

在数据传输方面，总线扩展器会将主总线的数据进行复制和转发，实现数据的分发和传输。具体来说，它会接收来自主总线的数据信号，然后将其复制并发送到扩展的总线上，从而实现数据的扩展和传输。

在控制方面，VBX01BA总线扩展器会根据主总线的控制信号，对扩展总线上的设备进行相应的控制和管理。这包括设备的加入和退出、数据的读写、设备的地址分配等。通过这种方式，总线扩展器实现了对扩展总线的管理和控制，确保了数据传输的可靠性和稳定性。

此外，VBX01BA总线扩展器还具有故障隔离和故障恢复等功能。当扩展总线上的设备出现故障时，总线扩展器能够将故障隔离在一定的范围内，防止故障扩散到整个系统。同时，它还能够通过自身的故障恢复机制，保证系统的稳定性和可靠性。

综上所述，总线扩展器通过复制、转发、管理、控制等环节实现总线的扩展和传输，为大型系统和远程设备提供了可靠的数据传输和控制解决方案。

VBX01BA 总线扩展器实现了对扩展总线的管理和控制

The working principle of VBX01BA bus extender mainly involves two aspects of data transmission and control.

First, the bus extender connects to the main bus through a specific interface, from which it obtains power, data, and control signals. It then converts and expands those signals accordingly to accommodate more devices or longer transmission distances.

In terms of data transmission, the bus extender will copy and forward the data of the main bus to achieve data distribution and transmission. Specifically, it will receive the data signal from the master bus, and then copy and send it to the extended bus, so as to achieve data expansion and transmission.

In terms of control, the VBX01BA bus extender will control and manage the devices on the extension bus according to the control signal of the main bus. This includes device joining and exiting, data reading and writing, device address assignment, and so on. In this way, the bus extender realizes the management and control of the extension bus, ensuring the reliability and stability of data transmission.

In addition, the VBX01BA bus extender also has the functions of fault isolation and fault recovery. When the device on the expansion bus fails, the bus extender can isolate the fault within a certain range and prevent the fault from spreading to the entire system. At the same time, it can also ensure the stability and reliability of the system through its own fault recovery mechanism.

To sum up, the bus extender realizes the expansion and transmission of the bus through replication, forwarding, management, control and other links, and provides a reliable data transmission and control solution for large systems and remote devices.
