VMIVME-3230-000 8通道低电平输入板

Description

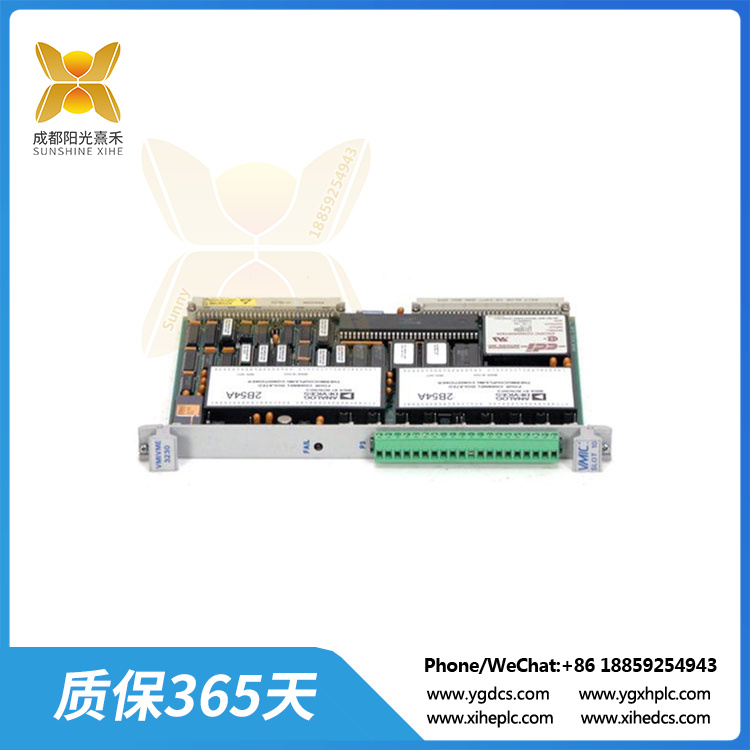

VMIVME-3230-000 8通道低电平输入板

VMIVME-3230-000是一款专为热电偶输入设计的8通道低电平输入板，由GE Fanuc/VMIC制造。这款板卡主要特色在于其同时接受多种热电偶类型的能力，这使得它在工业自动化和控制系统中有广泛的应用。

首先，VMIVME-3230-000拥有8个隔离式差分输入通道，每个通道都可以独立工作，为各种热电偶类型提供精确的输入。板载的16位微机使得其能够进行高精度的数据采集和处理，满足各种复杂控制需求。

其次，VMIVME-3230-000内置了A/D转换器，将模拟信号转换为数字信号，便于控制系统进行处理。此外，它还支持12位加符号的转换，提供了更为丰富的数据表示范围。

为了确保在各种环境下都能提供准确的测量，VMIVME-3230-000提供了本地或远程冷端补偿功能。这意味着无论热电偶的冷端处于何种温度环境，板卡都能自动进行补偿，确保测量结果的准确性。

此外，VMIVME-3230-000还具有强大的线性化功能，能够为各种热电偶类型提供精确的线性化输出，进一步提高了测量的精度。

在安全性方面，VMIVME-3230-000也表现出色。所有输入都经过滤波和隔离，有效抑制了干扰信号，保证了数据的稳定性。同时，板卡还具有正常模式过压保护功能，能够在输入电压过高时自动切断电路，保护板卡免受损坏。

热电偶的连接是通过螺钉接线端子进行的，这种连接方式简单可靠，便于安装和维护。接线端子直接连接到前面板P3连接器，使得布线更为整洁和方便。

综上所述，VMIVME-3230-000是一款功能强大、性能稳定的热电偶输入板卡。其同时接受多种热电偶类型的能力、高精度数据采集和处理、冷端补偿以及线性化功能等特点，使得它在工业自动化和控制系统中具有广泛的应用前景。无论是用于温度测量、控制还是数据采集，VMIVME-3230-000都能提供准确、可靠的数据支持，为工业自动化的发展贡献力量。

VMIVME-3230-000 8通道低电平输入板

The VMIVME-3230-000 is an 8-channel low level input board designed for thermocouple input, manufactured by GE Fanuc/VMIC. The main feature of this board is its ability to accept multiple thermocouple types at the same time, which makes it widely used in industrial automation and control systems.

First, the VMIVME-3230-000 has eight isolated differential input channels, each of which can operate independently to provide precise inputs for various thermocouple types. The onboard 16-bit microcomputer makes it capable of high-precision data acquisition and processing to meet various complex control requirements.

Second, the VMIVME-3230-000 has A built-in A/D converter to convert analog signals to digital signals for easy processing by the control system. In addition, it also supports 12-bit plus symbol conversion, providing a richer range of data representation.

To ensure accurate measurements in all environments, the VMIVME-3230-000 offers local or remote cold end compensation. This means that regardless of the temperature of the cold end of the thermocouple, the board can automatically compensate to ensure the accuracy of the measurement results.

In addition, the VMIVME-3230-000 also has a powerful linearization function, which provides accurate linearization outputs for various thermocouple types, further improving the accuracy of the measurement.

In terms of safety, the VMIVME-3230-000 also performs well. All inputs are filtered and isolated, effectively suppressing interference signals and ensuring data stability. At the same time, the board also has a normal mode overvoltage protection function, which can automatically cut off the circuit when the input voltage is too high to protect the board from damage.

The thermocouple is connected through the screw terminal, which is simple and reliable, easy to install and maintain. The terminal is directly connected to the P3 connector on the front panel for cleaner and more convenient wiring.

To sum up, the VMIVME-3230-000 is a powerful and stable thermocouple input board. Its ability to accept multiple thermocouple types at the same time, high-precision data acquisition and processing, cold-end compensation and linearization function make it have a wide range of application prospects in industrial automation and control systems. Whether used for temperature measurement, control or data acquisition, the VMIVME-3230-000 provides accurate and reliable data support to contribute to the development of industrial automation.
