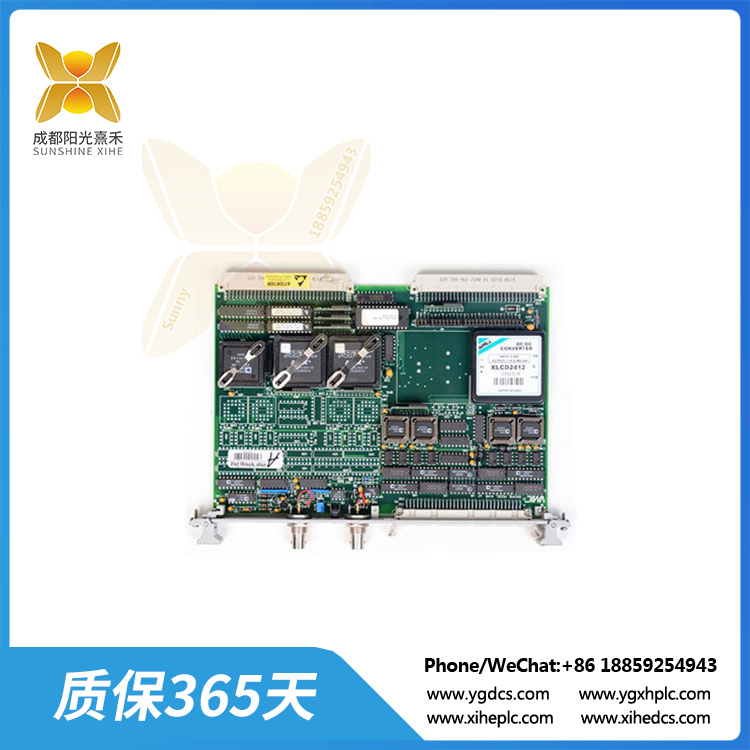

VMIVME-4140-011 控制脉冲卡件模块

Description

VMIVME-4140-011 控制脉冲卡件模块

VMIVME-4140-011是一款高性能的模拟输出板卡，专为工业自动化、测试测量以及军事和航空航天控制等领域设计。它拥有32个模拟输出通道，每个通道都配备了一个12位的D/A转换器（DAC），从而确保了输出信号的精确性和稳定性。

这款板卡的特点之一是它的每通道最大输出电流可达10mA，这使得它能够满足各种应用对于输出电流的需求。此外，VMIVME-4140-011的输出阻抗为0.8Q，这有助于确保信号的传输质量。

在更新方式上，VMIVME-4140-011支持随机更新，并且可以通过软件或外部同步进行双缓冲输出。这种灵活的更新方式使得它能够适应各种复杂的控制场景。

校准方面，VMIVME-4140-011采用了自动校准命令，无需手动校准。它可以通过复位或软件启动进行自动校准，从而大大降低了使用和维护的复杂度。

在输出范围方面，VMIVME-4140-011提供了多种选择，包括单相（0到+10V，0到+5V，0到+2.5V）或双极（+2.5V到-5V）等，用户可以根据具体的应用需求进行软件配置。

此外，VMIVME-4140-011还具备广泛的机载诊断测试能力，可以对输出进行自检和离散wi自测，从而确保系统的可靠性和稳定性。

在实际应用中，VMIVME-4140-011可以作为数据采集系统、控制系统以及精确模拟刺激和自动测试设备（ATE）的重要组成部分，为工业自动化和控制系统提供稳定、可靠的模拟输出解决方案。

总的来说，VMIVME-4140-011是一款功能强大、性能稳定的32通道16位模拟输出板卡，适用于各种复杂的工业自动化和控制系统场景。

VMIVME-4140-011 控制脉冲卡件模块

The VMIVME-4140-011 is a high-performance analog output board designed for industrial automation, test and measurement, and military and aerospace control. It has 32 analog output channels, each equipped with A 12-bit D/A converter (DAC), thus ensuring the accuracy and stability of the output signal.

One of the characteristics of this board is that it has a maximum output current of 10mA per channel, which makes it able to meet the output current needs of various applications. In addition, the output impedance of the VMIVME-4140-011 is 0.8Q, which helps to ensure the transmission quality of the signal.

In terms of update mode, VMIVME-4140-011 supports random updates and can double buffer output through software or external synchronization. This flexible update allows it to adapt to a variety of complex control scenarios.

In terms of calibration, the VMIVME-4140-011 uses an automatic calibration command, which eliminates the need for manual calibration. It can be automatically calibrated by reset or software startup, which greatly reduces the complexity of use and maintenance.

In terms of output range, the VMIVME-4140-011 offers a variety of options, including single-phase (0 to +10V, 0 to +5V, 0 to +2.5V) or bipolar (+2.5V to -5V), and users can configure the software according to specific application requirements.

In addition, the VMIVME-4140-011 has a wide range of on-board diagnostic test capabilities that enable output self-testing and discrete wi self-testing to ensure system reliability and stability.

In practical applications, the VMIVME-4140-011 can be used as an important part of data acquisition systems, control systems, and precise analog stimulation and automatic test equipment (ATE) to provide a stable and reliable analog output solution for industrial automation and control systems.

Overall, the VMIVME-4140-011 is a powerful and stable 32-channel 16-bit analog output board suitable for a variety of complex industrial automation and control system scenarios.
