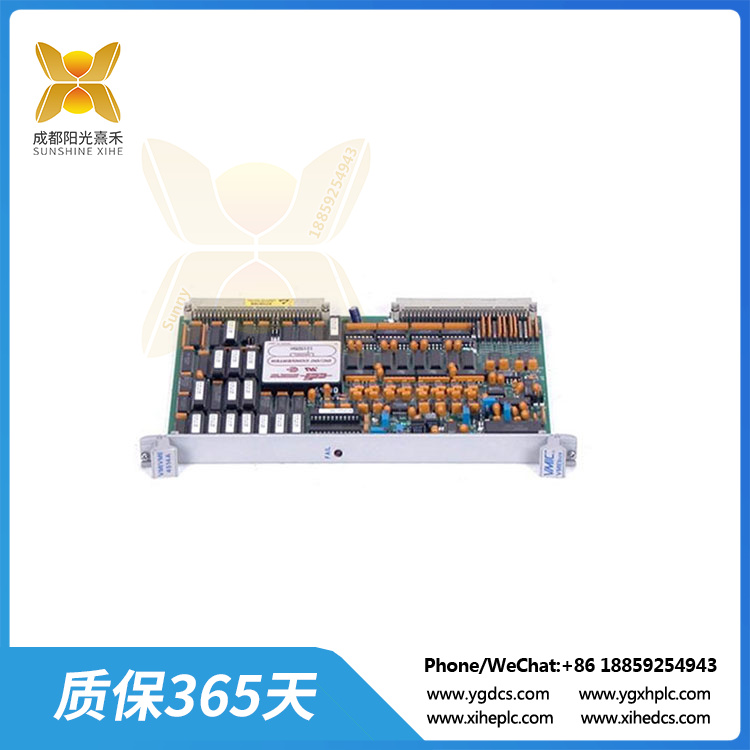

VMIVME-4514A-000 16通道、12位模拟输入/输出（AIO）板卡

Description

VMIVME-4514A-000 16通道、12位模拟输入/输出（AIO）板卡

VMIVME-4514A-000是一款基于VME总线的16通道、12位模拟输入/输出（AIO）板卡。这款板卡提供了在闭环模拟系统中所需的激励和响应功能，满足了多种工业自动化和控制应用的需求。

它拥有常驻的12位模数转换器（ADC）和数模转换器（DAC），这保证了信号转换的精确性和稳定性。模拟信号可以通过P2背板连接器轻松获取，为用户提供了极大的便利。

VMIVME-4514A-000板卡支持多种电压范围的输出，包括0至+5V、0至+10V（单极性），以及±2.5V、±5V或±10V（双极性）。用户可以根据实际需求，通过板载跳线进行编程，以在各种电压范围内工作。

此外，这款板卡还内置了测试功能，可以对板上的所有有源组件进行检查，确保其在运行过程中的稳定性和可靠性。

VMIVME-4514A-000为过程控制、仿真器、培训师和监控等VME总线应用提供了单板解决方案，满足了这些应用对于模拟输入/输出的要求。无论是需要精确控制的应用场景，还是对于稳定性和可靠性有较高要求的环境，VMIVME-4514A-000都能提供出色的性能。

总的来说，VMIVME-4514A-000是一款功能强大、性能稳定的模拟输入/输出板卡，适用于各种基于VME总线的工业自动化和控制系统。

VMIVME-4514A-000 16通道、12位模拟输入/输出（AIO）板卡

The VMIVME-4514A-000 is a 16-channel, 12-bit analog input/output (AIO) board based on the VME bus. The board provides the excitation and response capabilities required in closed-loop simulation systems to meet the needs of a variety of industrial automation and control applications.

It has a resident 12-bit analog-to-digital converter (ADC) and digital-to-analog converter (DAC), which guarantees the accuracy and stability of the signal conversion. The analog signal can be easily accessed through the P2 backplane connector, providing users with great convenience.

The VMIVME-4514A-000 board supports a wide range of outputs, including 0 to +5V, 0 to +10V (unipolar), as well as ±2.5V, ±5V or ±10V (bipolar). Users can program the onboard jumper to work in various voltage ranges according to their actual needs.

In addition, the board also has a built-in test function, which can check all the active components on the board to ensure its stability and reliability during operation.

The VMIVME-4514A-000 provides a single board solution for VME bus applications such as process control, simulators, trainers and monitoring, meeting the analog input/output requirements of these applications. The VMIVME-4514A-000 delivers outstanding performance for applications that require precise control or require high levels of stability and reliability.

Overall, the VMIVME-4514A-000 is a powerful and stable analog input/output board suitable for a variety of VME bus-based industrial automation and control systems.
