VMIVME-7459 单槽VME IDE CD-RW模块

描述

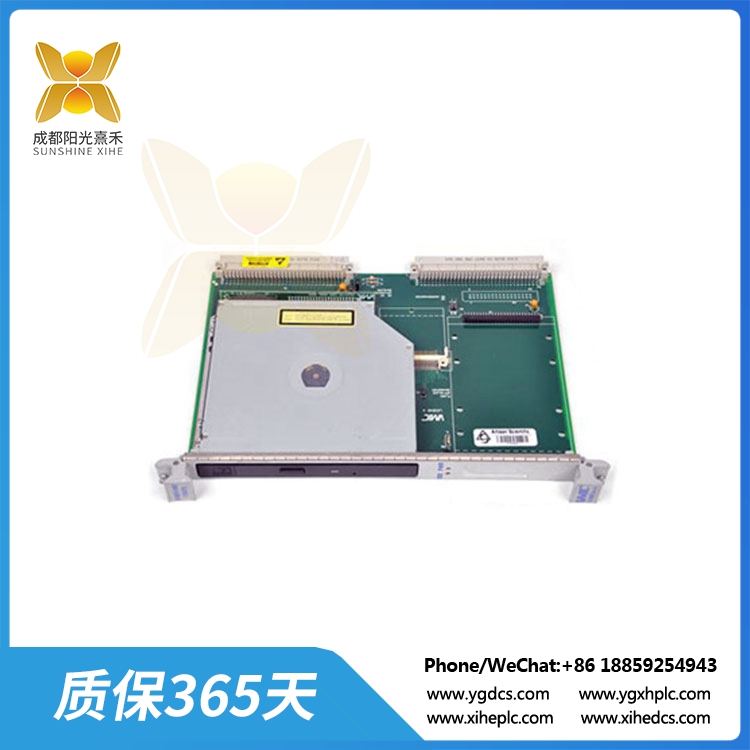

VMIVME-7459 单槽VME IDE CD-RW模块

特点:
Vme ide cd / cd – rw
可选硬盘模块或CompactFlash
单插槽(4 HP) 6U外形因素
连接通过VME P2连接器
GE Fanuc / VMIC VMIVME-7459单槽VME IDE CD-RW/硬盘驱动器模块是一款多功能大容量存储模块，适用于GE Fanuc嵌入式系统的VME处理器系列。VMIVME-7459有多种配置，包括可写光盘和高达80GB的硬盘存储。该组件将支持一个光盘驱动器和一个硬盘驱动器，用于连接到单个IDE接口。CD- rw驱动器选项与照片CD, CD- i，视频CD，增强CD, CD PLUS, CD- rom – xa, CD- da和CD- rw兼容。支持一次性光盘、一次性轨、多会话和增量包写入格式。

CD- rom驱动器选项支持多会话光盘，并与照片CD, CD- i，视频CD，增强CD和CD PLUS兼容。DVD-ROM选项允许用户在VMIVME-7459上提供最好和最通用的选项。DVD-ROM允许用户读取DVD-ROM、DVD-R和DVD-RW媒体，并为用户提供CD-RW功能和标准CD-ROM功能。

IDE硬盘是可选的。提供跳线来配置设备作为IDE主设备或从设备。这使得VMIVME-7459在应用中具有灵活性，因为它可以作为纯cd模块或纯硬盘模块与其他GE发那科存储模块一起使用。例如，完全填充的VMIVME-7459可以与仅软盘的VMIVME-7452模块一起使用。

VMIVME-7459通过VME P2自定义引脚与SBC (single board computer) IDE接口建立连接。SBC模块的类型和VME机箱的物理布置决定了可选电缆的要求。对于具有单个槽位SBC的典型应用程序，VMIVME-7459在物理上放置在SBC附近。单板之间的连接采用双槽位VMXC-2电缆组件，或为容纳软盘模块，采用三槽位VMXC-3电缆组件。对于双槽GE发那科SBC应用或VMIVME-7459不靠近SBC的安装，建议使用14英寸VMXC-H电缆组件。

VMIVME-7459

VMIVME-7459 单槽VME IDE CD-RW模块

Features:
VME IDE CD/CD-RW
Optional Hard Disk Drive Module or CompactFlash
Single Slot (4 HP) 6U Form Factor
Connection Via VME P2 Connector
The GE Fanuc / VMIC VMIVME-7459 Single-Slot VME IDE CD-RW/Hard Drive Module is a versatile mass storage module for use with GE Fanuc Embedded Systems’ line of VME processors. The VMIVME-7459 is available in a variety of configurations that include writable compact disc and up to 80GB hard disk storage. The assembly will support one compact disc drive and one hard disk drive for connection to a single IDE interface. The CD-RW drive option is compatible with Photo CD, CD-I, Video CD, Enhanced CD, CD PLUS, CD-ROM-XA, CD-DA and CD-RW. Disc-At-Once, Track-At-Once, Multisession and Incremental Packet Writing formats are supported.

The CD-ROM drive option supports multisession discs and is compatible with Photo CD, CD-I, Video CD, Enhanced CD and CD PLUS. The DVD-ROM option allows users to have the best and most versatile option provided on the VMIVME-7459. The DVD-ROM allows users to read DVD-ROM, DVD-R and DVD-RW media as well as providing the user with CD-RW capabilities and standard CD-ROM capability.

An IDE hard disk is optional. Jumpers are provided to configure either device as IDE master or slave. This permits the VMIVME-7459 flexibility in applications as it may be used as a CD-only module or a hard disk-only module in conjunction with other GE Fanuc storage modules. The fully populated VMIVME-7459 may be used with a floppy disk-only VMIVME-7452 module, for example.

The VMIVME-7459 establishes connection to the single board computer (SBC) IDE interface through the VME P2 user-defined pins. The type of SBC module and physical arrangement of the VME chassis determine the optional cable requirement. For a typical application with a single slot SBC, the VMIVME-7459 is physically placed adjacent to the SBC. Connection between boards is with a two-slot VMXC-2 cable assembly, or to accommodate a floppy disk module, with a three-slot VMXC-3 cable assembly. For application with a double slot GE Fanuc SBC or installations where the VMIVME-7459 is not placed adjacent to the SBC, the 14-inch VMXC-H cable assembly is recommended.
