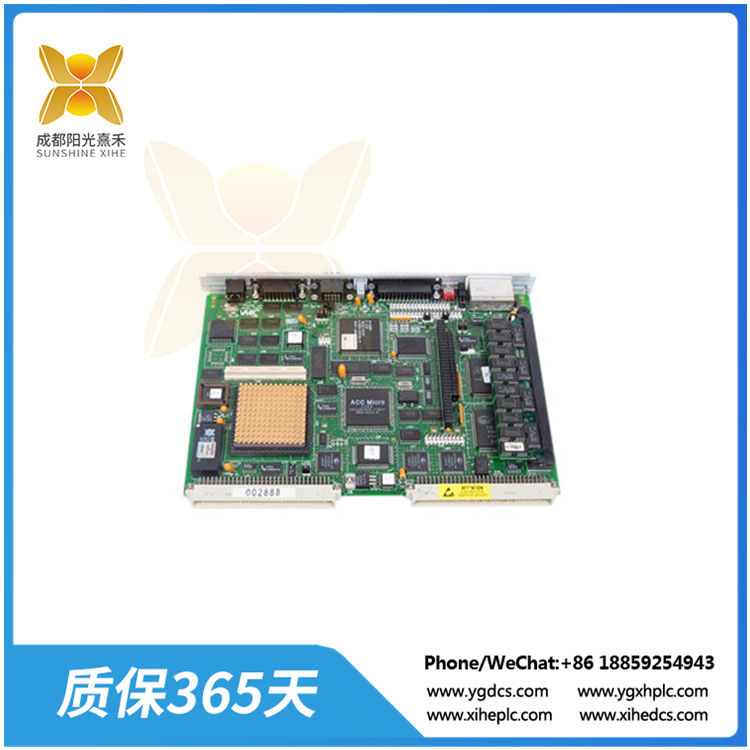

VMIVME-7487A 单板计算机/双端口内存板

Description

VMIVME-7487A 单板计算机/双端口内存板

VMIVME-7487A 单板计算机/双端口内存板

VMIVME-7487A-343
• Memory Size: 32 MB
• CPU Selection: 100 MHz 486DX4

Daughter Card Part Number: 332-000201-000

Features:
PC/AT-Compatible Processor
Single Slot 6U Size
Super VGA 1024 x 768 Noninterlaced Resolution
Two Serial RS-232C Ports
Real-Time Clock with On-Board Battery
Floppy and IDE Controllers On-Board
Industry-Standard Gate Array Technology
Access All VMEbus Memory in Real or Protected Modes
The VMIVME-7487 single-board microcomputer is a complete IBM PC/AT 80486 compatible microcomputer with the additional benefits of Eurocard construction and full compatibility with the VMEbus Specification Rev. C.1. The VMIVME-7487 has an advanced VMEbus interface, mailbox registers, and RAM that is dual-ported to the VMEbus, making it ideal for multiprocessor applications. VMIC’s VMIVME-7487 has two operating modes: a standard PC/AT compatible mode, and a VMEbus controller mode. Upon powerup it functions as a standard PC/AT. It executes a PC/AT-type power-on self-test, then boots up MS-DOS, Windows, OS/2, NextStep, XENIX, or any other PC/AT compatible operating system. After booting, the VMIVME-7487 may take on the additional functions of a VMEbus controller and interact with other VMEbus modules. The VMIVME-7487 may also be accessed as a VMEbus slave board.

Product Family: VMIVME-7487, VMIVME7487, VMIVME 7487, VME-7487, VME7487, VME 7487
