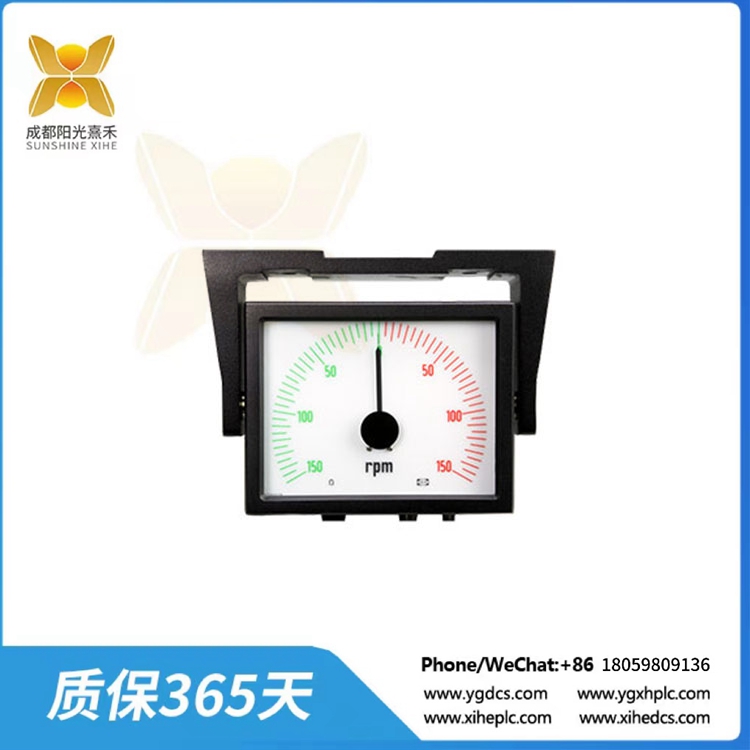

VTR-5-PY 驾驶室翼指示器

Description

VTR-5-PY 驾驶室翼指示器

将XL指标带到户外
与XL系列照明指示器一样，DEIF的照明桥翼指示器还具有DEIF的专利，微处理器控制的X-Coil技术，允许360度旋转，0.5级精度和50g抗震性，并且具有丰富的海洋认证。BRW-2和BW系列支持CAN和广泛的模拟信号和调光输入，加快了安装速度并简化了集成。
BRW-2是一种壁挂式桥翼指示器，标配前置物理调光器，非常适合满足桥翼指示器要求，如巴拿马运河的OP NOTICE TO SHIPPING No N-1中详细说明的要求。

BW是一种灵活的桥翼指示器，悬挂或站立在枢轴脚上，可用于室内和室外安装两种尺寸，标配后置物理调光器。

DEIF的标准刻度范围旨在满足国际标准，如RPM，俯仰，舵角，转速，方位角等等。为了满足特定的应用或品牌需求或促进协调设计，DEIF提供高成本效益和快速的定制规模设计服务。通过利用DEIF预先批准的MED系统(包括BW和BRW-2指标，以及DEIF桥接产品组合中的其他产品，如XL和XDi)，可以降低和减轻系统审批的成本和风险。

我们建议安装在户外的仪器使用白色刻度，以增加指示器的使用寿命。

VTR-5-PY

VTR-5-PY 驾驶室翼指示器

Bringing XL indicators outdoors
As with the XL series of illuminated indicators, DEIF’s illuminated bridge wing indicators also feature DEIF’s patented, microprocessor-controlled X-Coil technology which allows 360 degrees of rotation, Class 0.5 accuracy and 50g shock resistance, and it comes with a wealth of marine approvals. The BRW-2 and BW series support both CAN and a wide range of analogue signal and dimming inputs, speeding up installation and simplifying integration.
BRW-2 is a wall mounted bridge wing indicator with a front-mounted physical dimmer as standard, perfect for meeting bridge wing indicator requirements such as those detailed in the Panama Canal’s OP NOTICE TO SHIPPING No N-1.

BW is a flexible bridge wing indicator, hanging or standing on a pivot foot, available in two sizes for indoor and outdoor mounting with a rear-mounted physical dimmer as standard.

DEIF’s range of standard scales is designed to meet international standards, such as RPM, Pitch, Rudder Angle, Rate of Turn, Azimuth and much more. To meet specific application or branding needs or to facilitate harmonised designs, DEIF offers a highly cost effective and fast custom scale design service. The cost and risk of system approvals can be reduced and mitigated by taking advantage of DEIF’s pre-approved MED systems which include BW and BRW-2 indicators combined with other products from DEIF’s bridge portfolio such as XL and XDi.

We recommend using white scales for instruments mounted outdoors to increase the lifetime of the indicator.
